| 种类：拨动式 | 加工定制：是 | 品牌：KE |
| 型号：DSPV02LHGET | 产品类别：热销 | 接触电阻(Ω)：50毫欧 |
| 绝缘电阻(MΩ)：最小100兆欧 | 营销类别：低价 | 营销方式：厂家直销 |
| 额定电压(V)：24V | 额定电流(A)：25mA |

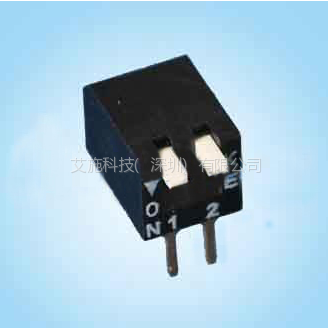

nPiano（DSPV Series)
规格：2P~12P
Ratings:
Contact Rating
Contact Resistance : 50mΩ max
Switching: 25mA at 24VDC
Non-Switching: 100mA at 50VDC
Mechanical & Processing
Operation Force: 500gf Max
Mechanical Life: 2000cycles Operations
Resistance to Soldering: 245 ± 5℃ for3-5
